R in Power BI

class: center, middle, inverse, title-slide

# R in Power BI
## SQL Saturday #759
### Taras Kaduk
### 2018/05/05

---

# Agenda

- What is R
- R inside Power BI
- Why do you even need it?

# Slides and stuff

## [https://github.com/taraskaduk/r-in-power-bi](https://github.com/taraskaduk/r-in-power-bi)

---

# ~~What is love?~~  What is R?
## More importantly, what can it do?

- data transform
- stat analysis
- machine learning / predictive modeling
- web apps
- reports, presentations
- websites & books

---
# What can R do?
## Data transformation

```r
head(iris)
```

```
##   Sepal.Length Sepal.Width Petal.Length Petal.Width Species
## 1          5.1         3.5          1.4         0.2  setosa
## 2          4.9         3.0          1.4         0.2  setosa
## 3          4.7         3.2          1.3         0.2  setosa
## 4          4.6         3.1          1.5         0.2  setosa
## 5          5.0         3.6          1.4         0.2  setosa
## 6          5.4         3.9          1.7         0.4  setosa
```

---
# What can R do?
## Data transformation

```r
iris_gather <- iris %>%
    gather("key", "size", -Species)

head(iris_gather)
```

```
##   Species          key size
## 1  setosa Sepal.Length  5.1
## 2  setosa Sepal.Length  4.9
## 3  setosa Sepal.Length  4.7
## 4  setosa Sepal.Length  4.6
## 5  setosa Sepal.Length  5.0
## 6  setosa Sepal.Length  5.4
```

---
# What can R do?
## Data transformation

```r
iris_gather2 <- iris_gather %>%
    separate(col = key, into = c('part', 'dimension'))

head(iris_gather2)
```

```
##   Species  part dimension size
## 1  setosa Sepal    Length  5.1
## 2  setosa Sepal    Length  4.9
## 3  setosa Sepal    Length  4.7
## 4  setosa Sepal    Length  4.6
## 5  setosa Sepal    Length  5.0
## 6  setosa Sepal    Length  5.4
```

---

# What can R do?
## Data transformation

```r
iris_summary <- iris_gather2 %>%
    group_by(Species) %>%
    summarise(size_avg = mean(size),
              size_sd = sd(size),
              size_med = median(size))

head(iris_summary)
```

```
## # A tibble: 3 x 4
##   Species    size_avg size_sd size_med
##   <fct>         <dbl>   <dbl>    <dbl>
## 1 setosa         2.54    1.85     2.10
## 2 versicolor     3.57    1.76     3.30
## 3 virginica      4.28    1.92     4.15
```

---
## **What can R do?** Data visualization
![](https://d33wubrfki0l68.cloudfront.net/c7361de6666276165f0e6a1cccf88a9aff64ab90/19a4b/post/2017-09-mpaa/mpaa_files/figure-html/good_will_hunting-1.png)
[https://taraskaduk.com/2018/01/10/mpaa-damon/](https://taraskaduk.com/2018/01/10/mpaa-damon/)
---
# What can R do?
## Data visualization

![](https://d33wubrfki0l68.cloudfront.net/cd18743b0d0cb9270a884f2df772e64595ac99bb/2dfe8/post/2017-11-pixel-maps/pixel-maps_files/figure-html/unnamed-chunk-5-1.png)

[https://taraskaduk.com/2017/11/26/pixel-maps/](https://taraskaduk.com/2017/11/26/pixel-maps/)

---
### **What can R do?** Web apps (A.k.a Shiny)
[https://taraskaduk.shinyapps.io/rate/](https://taraskaduk.shinyapps.io/rate/)

- reports
- presentations (including this one!)
- websites
- books

---

## **What can R do?** Bread and butter

> *"The best thing about R is that it was written by statisticians. The worst thing about R is that it was written by statisticians."*
>   **~ Bob Cowgill** (probably) <sup>1</sup>

.footnote[
[1 - Why has R, despite quirks, been so successful? - Revolution Analytics](http://blog.revolutionanalytics.com/2015/06/why-has-r-been-so-successful.html)
]

---

## What can R do?
### Statistical analysis and Machine Learning

- perform statistical analysis
- create, train and test models on your laptop (`caret`, `modelr` packages, etc)
- reach to Keras and TensorFlow from within R
- et cetera et cetera

---

## R in Power BI
### R in Microsoft

What can you do with R inside of MS products?
- Run R on SQL Server.
- Run R code in Azure ML

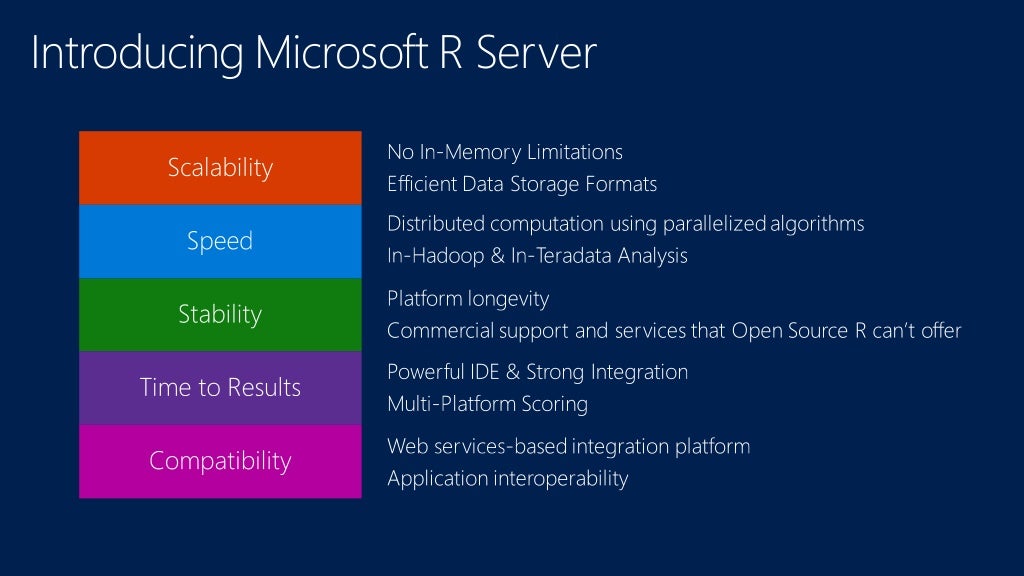

- Use Microsoft R Server for paralel processing

---

[https://microsoft.github.io/sql-ml-tutorials/R/rentalprediction/step/3.html](https://microsoft.github.io/sql-ml-tutorials/R/rentalprediction/step/3.html)

```sql
-- Stored procedure that trains and generates an R model using the rental_data and a decision tree algorithm
DROP PROCEDURE IF EXISTS generate_rental_rx_model;
go
CREATE PROCEDURE generate_rental_rx_model (@trained_model varbinary(max) OUTPUT)
AS
BEGIN
    EXECUTE sp_execute_external_script
      @language = N'R'
    , @script = N'
        require("RevoScaleR");

rental_train_data$Holiday = factor(rental_train_data$Holiday);
            rental_train_data$Snow = factor(rental_train_data$Snow);
            rental_train_data$WeekDay = factor(rental_train_data$WeekDay);

#Create a dtree model and train it using the training data set
        model_dtree <- rxDTree(RentalCount ~ Month + Day + WeekDay + Snow + Holiday, data = rental_train_data);
        #Before saving the model to the DB table, we need to serialize it
        trained_model <- as.raw(serialize(model_dtree, connection=NULL));'

, @input_data_1 = N'select "RentalCount", "Year", "Month", "Day", "WeekDay", "Snow", "Holiday" from dbo.rental_data where Year < 2015'
    , @input_data_1_name = N'rental_train_data'
    , @params = N'@trained_model varbinary(max) OUTPUT'
    , @trained_model = @trained_model OUTPUT;
END;
GO
```

---
class: center, middle

![](https://docs.microsoft.com/en-us/azure/machine-learning/studio/media/r-quickstart/fig1.png)

---
class: center, middle
![](https://sdtimes.com/wp-content/uploads/2016/01/0113.sdt-news.png)

---
class: center, middle
![](https://image.slidesharecdn.com/1-lab209-160901013524/95/microsoft-r-server-for-distributed-computing-23-1024.jpg?cb=1472693770)

---
## R in Power BI

That's cool, but what can I do with R in Power BI?

- custom R visuals
- scripts
- visuals

---
class: middle, center
# Custom R visuals
---
![](http://gqbi.files.wordpress.com/2016/08/082516_0434_binsightpow3.png)
http://community.powerbi.com/t5/R-Script-Showcase/bd-p/RVisuals
---
# Custom R visuals
https://docs.microsoft.com/en-us/power-bi/desktop-r-powered-custom-visuals
![](https://docs.microsoft.com/en-us/power-bi/media/desktop-r-powered-custom-visuals/powerbi-r-powered-custom-viz_3a.png)

---
# Custom R visuals
![](https://docs.microsoft.com/en-us/power-bi/media/desktop-r-powered-custom-visuals/powerbi-r-powered-custom-viz_10.png)

---
# Custom R Visuals

[https://github.com/Microsoft/PowerBI-visuals-forcasting-exp](https://github.com/Microsoft/PowerBI-visuals-forcasting-exp)

```r
  ets_params = list(Automatic="Z",Multiplicative="M",Additive="A",None="N")
  if(frequency(timeSeries) == 1)
    seasonType = "None"
  deModel = paste(ets_params[[errorType]],ets_params[[trendType]],ets_params[[seasonType]],sep="")

  if(sum(deModel==c("ANM","ZMA","MMA","AZM","AMZ","AMM","AMA","AMN","AAM")))# Forbidden model combination
    deModel = "ZZZ"

  fit = ets(timeSeries, model=deModel,damped=damped)
```

---
# Custom R Visuals

[https://github.com/Microsoft/PowerBI-visuals-forcasting-exp](https://github.com/Microsoft/PowerBI-visuals-forcasting-exp)

```r
    p1a <- p1a + labs (title = pbiInfo, caption = NULL) + theme_bw()
    p1a <- p1a + xlab(labTime) + ylab(labValue)
    p1a <- p1a + scale_x_continuous(breaks = seq(1,length(prediction$x) + length(prediction$mean)-1, length.out = numTicks), labels = x_with_forcast_formatted)
    p1a <- p1a +  theme(axis.text.x  = element_text(angle = getAngleXlabels(x_with_forcast_formatted),
                                                    hjust=1, size = sizeTicks, colour = "gray60"),
                        axis.text.y  = element_text(vjust = 0.5, size = sizeTicks, colour = "gray60"),
                        plot.title  = element_text(hjust = 0.5, size = sizeWarn),
                        axis.title=element_text(size =  sizeLabel),
                        axis.text=element_text(size =  sizeTicks),
                        panel.border = element_blank())
```

---
class: middle, center
# Custom R visuals in Power BI are well thought-out and overall legit. Use them
---
class: middle, center
# R Scripts
---
# R scripts

### - When Power Query can't do the job
### - When Power Query is slow and clunky
---
# R scripts

This
```
let
    Source = Web.Page(
                Web.Contents(
                "https://github.com/jennybc/gapminder/blob/master/inst/extdata/gapminder.tsv"
                )),
    Data = Source{0}[Data],
    col_types = Table.TransformColumnTypes(Data,{
                                  {"", type text},
                                  {"country", type text},
                                  {"continent", type text},
                                  {"year", Int64.Type},
                                  {"lifeExp", type number},
                                  {"pop", Int64.Type},
                                  {"gdpPercap", type number}
                                                }),
    filter = Table.SelectRows(col_types, each ([year] = 2007)),
    mutate = Table.AddColumn(filter, "lifeExpMonths",
                                each [lifeExp] * 12, type number),
    arrange = Table.Sort(mutate,{{"lifeExpMonths", Order.Descending}})
in
    arrange
```

---
# R scripts

VS this

```r
library(gapminder)
library(dplyr)

gapminder %>%
  filter(year == '2007') %>%
  mutate(lifeExpMonths = 12 * lifeExp) %>%
  arrange(desc(lifeExpMonths))
```

---
# R scripts
## *What If* demo

- what_if.R
- what_if.pbix
- https://app.powerbi.com/view?r=eyJrIjoiNmNjZGE3MzEtMmMxYy00NDRmLWEyZmEtOTAyM2FmNTQzMzc2IiwidCI6IjQ4NTlkNTVmLTkyMjUtNDNmYy1iMWJiLWUwM2I0MmE4NWM0ZCIsImMiOjJ9

---
class:middle, center
<img src="https://raw.githubusercontent.com/taraskaduk/r-in-power-bi/master/presentation/3.PNG">

---
class:middle, center
<img src="https://raw.githubusercontent.com/taraskaduk/r-in-power-bi/master/presentation/4.PNG">

---
class:middle, center
<img src="https://raw.githubusercontent.com/taraskaduk/r-in-power-bi/master/presentation/5.PNG">

---
<iframe width="800" height="600" src="https://app.powerbi.com/view?r=eyJrIjoiNmNjZGE3MzEtMmMxYy00NDRmLWEyZmEtOTAyM2FmNTQzMzc2IiwidCI6IjQ4NTlkNTVmLTkyMjUtNDNmYy1iMWJiLWUwM2I0MmE4NWM0ZCIsImMiOjJ9" frameborder="0" allowFullScreen="true"></iframe>
---
# R scripts
## Forecast demo

- financial_forecast_demo.pbix
- financial_forecast_demo.r
- https://app.powerbi.com/view?r=eyJrIjoiZWU0ZjUzZGUtZjk5Yi00ZGU1LThhZTgtYWJiNGEzYzFlZjgyIiwidCI6IjQ4NTlkNTVmLTkyMjUtNDNmYy1iMWJiLWUwM2I0MmE4NWM0ZCIsImMiOjJ9

---
class:middle, center
<img src="https://raw.githubusercontent.com/taraskaduk/r-in-power-bi/master/presentation/1.PNG">
---
class:middle, center
<img src="https://raw.githubusercontent.com/taraskaduk/r-in-power-bi/master/presentation/2.PNG">

---

---
# When to use R in Power BI

## Do
- performance
- machine learning, statistical analysis
- custom visualizations

## Don't
- when no one else knows R on your team
- when you can get by with Power BI
- when you can get by with SQL

---
